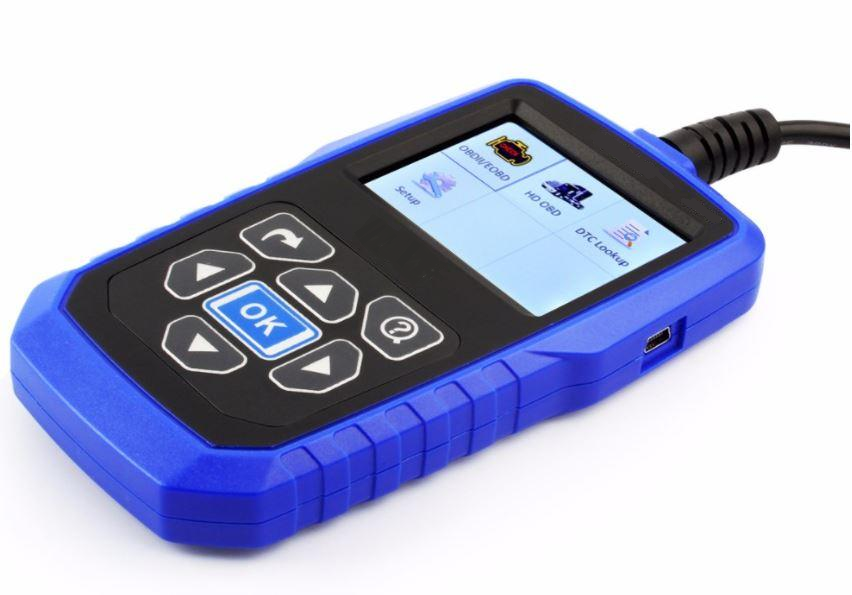

John Deere Diagnostic Scanner Fault Code Reader

Service and Maintain Your John Deere Machinery.

The John Deere diagnostic scanner enables you to read the fault codes that relate to the check engine light for your John Deere equipment. It works on all John Deere models listed in the drop down box above.

With the code reader, you can quickly find out trouble causes (troubleshooter) of electronically controlled systems on your equipment, by simply connecting the reader to the diagnostic socket, whilst reading the trouble code (DTC) shown on the device, and hence, identifying, locating and checking trouble causes.

The scanner covers tractors, loaders, bundlers, backhoes, compactors, excavators, harvester and many more, see in the description further below.

Code clearing with this tool will occur when the problem is fixed and it moves from active into stored. This will then be cleared after a number of key starts of the John Deere equipment.

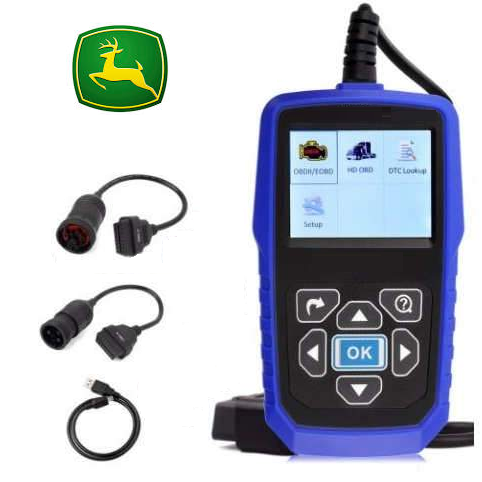

Package Includes:
1 x Diagnostic tool
1 x USB cable
1 x User manual

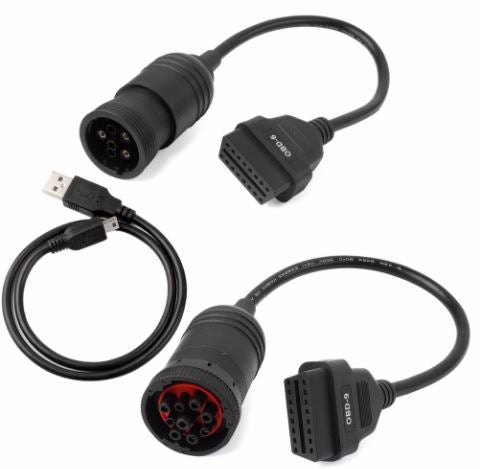

1 x 6 pin connector
1 x 9 pin connector
1 x OBD2 connection

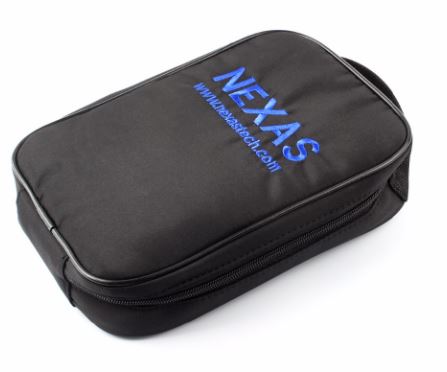

1 x Nylong carry bag

Choose your John Deere year and model from the drop down list above.

We ship free to U.S. Customers

Description

This Heavy Duty code reader for John Deere equipment enables you to read the fault codes that relate to the check engine light on your machinery. It will work with your specific equipment as listed in the drop down boxes above, so please select.

With this code reader, you can quickly find out trouble causes (troubleshooter) of electronically controlled systems on your equipment, by simply connecting the device to your equipment's diagnostic socket, whilst reading the trouble code (DTC) shown on the device, and hence, identifying, locating and checking trouble causes. Will cover troubles that your John Deere ECU is capable of handling, ranging from engine, O2 sensors, suspension, fuel system and more!

Features:

• Reads Diagnostic Trouble Codes (DTCs)
• Procedure for clearing codes detected
• Supports multiple trouble code requests

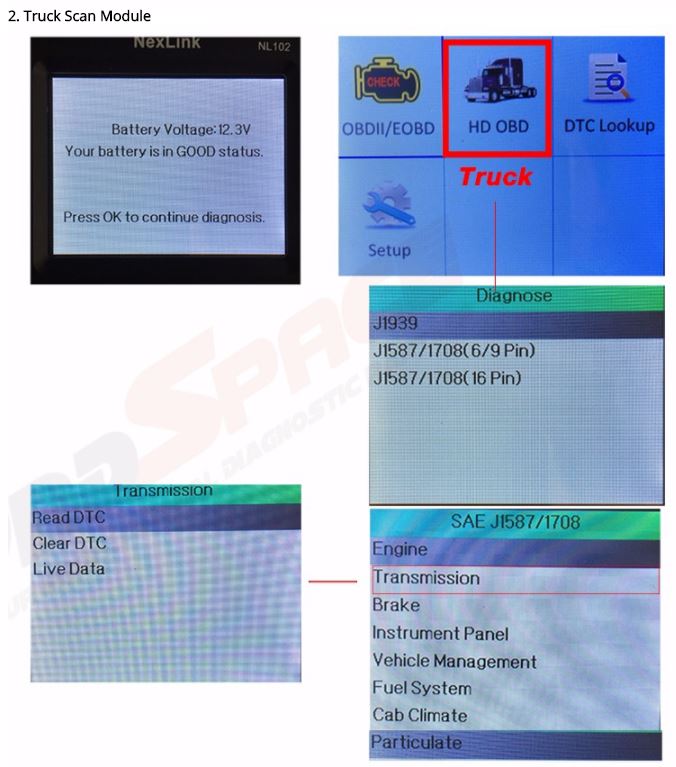

• Uniquely featured with battery power monitor function

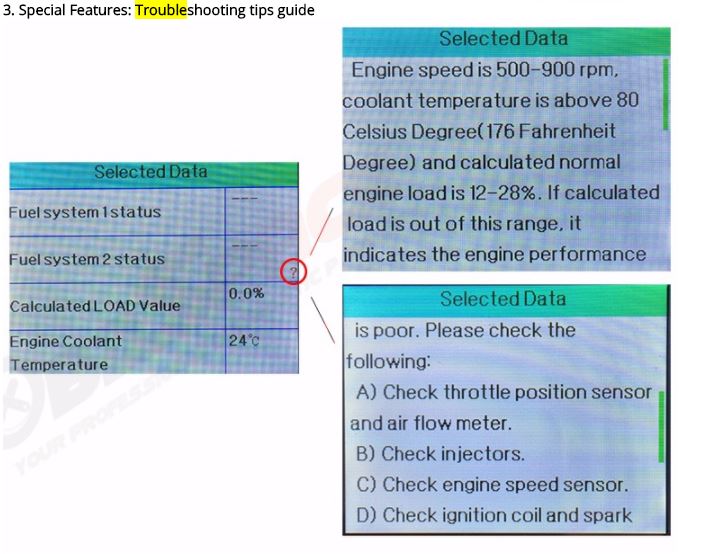

• Troubleshooting tips guide technicians to the root of problems faster, saving diagnosis and repair time
• Highly reliable and accurate

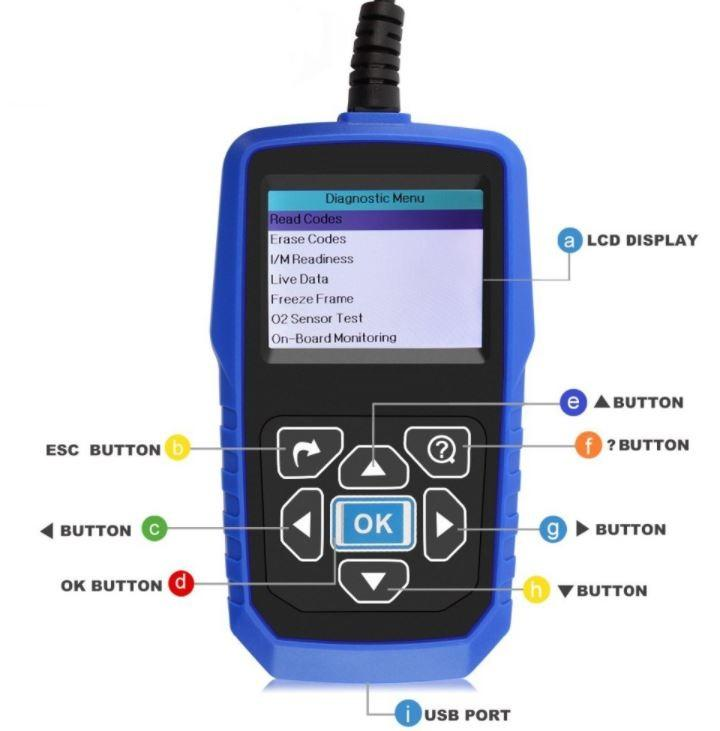

• Easy-to-read crystal-clear backlit 2-line LCD display
• Easy to use with one plug-in
• Read  PCM live data stream, with graphic data Display
• Software upgrade via internet
• Stand-alone unit with no need for an additional laptop / computers to operate
• Small in size and conveniently fits in your palm and performs continuous DTC scans
• Safely communicates with the on-board computer

• Display DTC definition, freeze frame data, monitor and I/M readiness status (emissions), and vehicle information (VIN, CIN and CVN)

Coverage:

Choose your John Deere year and model from the drop down list above.
